West Lab V2 Dots Universal Mouse Skates

West Lab V2 Dots Universal

What is the difference between V1 and V2?

Compared to V1, the main upgrades of the V2 series are mainly reflected in two key dimensions: production mode and material quality:

All the V2 series production lines are now made in West lab own factory, completely eliminating outsourcing. Now with full end-to-end control over the entire process—from R&D, production, and assembly to final packaging and quality inspection—ensuring quality control stability for every single batch at the source.

To address the issue of the V1 series having very limited material choices due to cost constraints, the V2 series no longer focuses on material cost, but solely on material quality. For example, the V2 skate has replaced the domestic foam used in V1 with higher-cost Sekisui foam completely resolves the long-standing adhesive residue issue of V1, significantly optimizing the user experience.

After extensive research, West lab found that within the same material category (like pure PTFE), mouse skate smoothness depends far more on the dot’s curvature design and its compatibility with the mousepad than on minor material differences. Because factors like contact surface area interact differently with various mousepad textures—creating vastly different, highly subjective tactile feedback—West lab strongly recommends users buy a sample pack to test against their personal setup and preferences before committing to a bulk purchase.

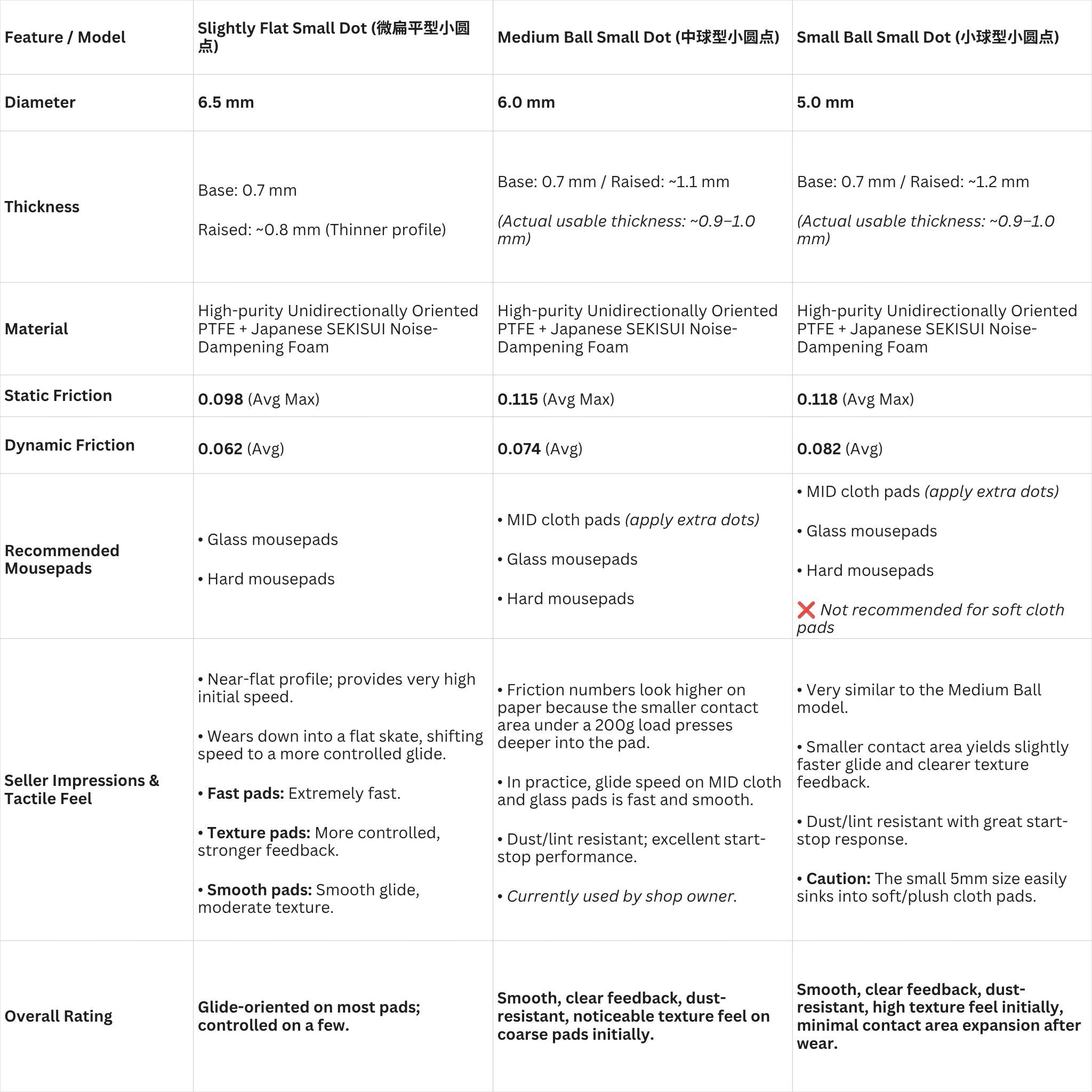

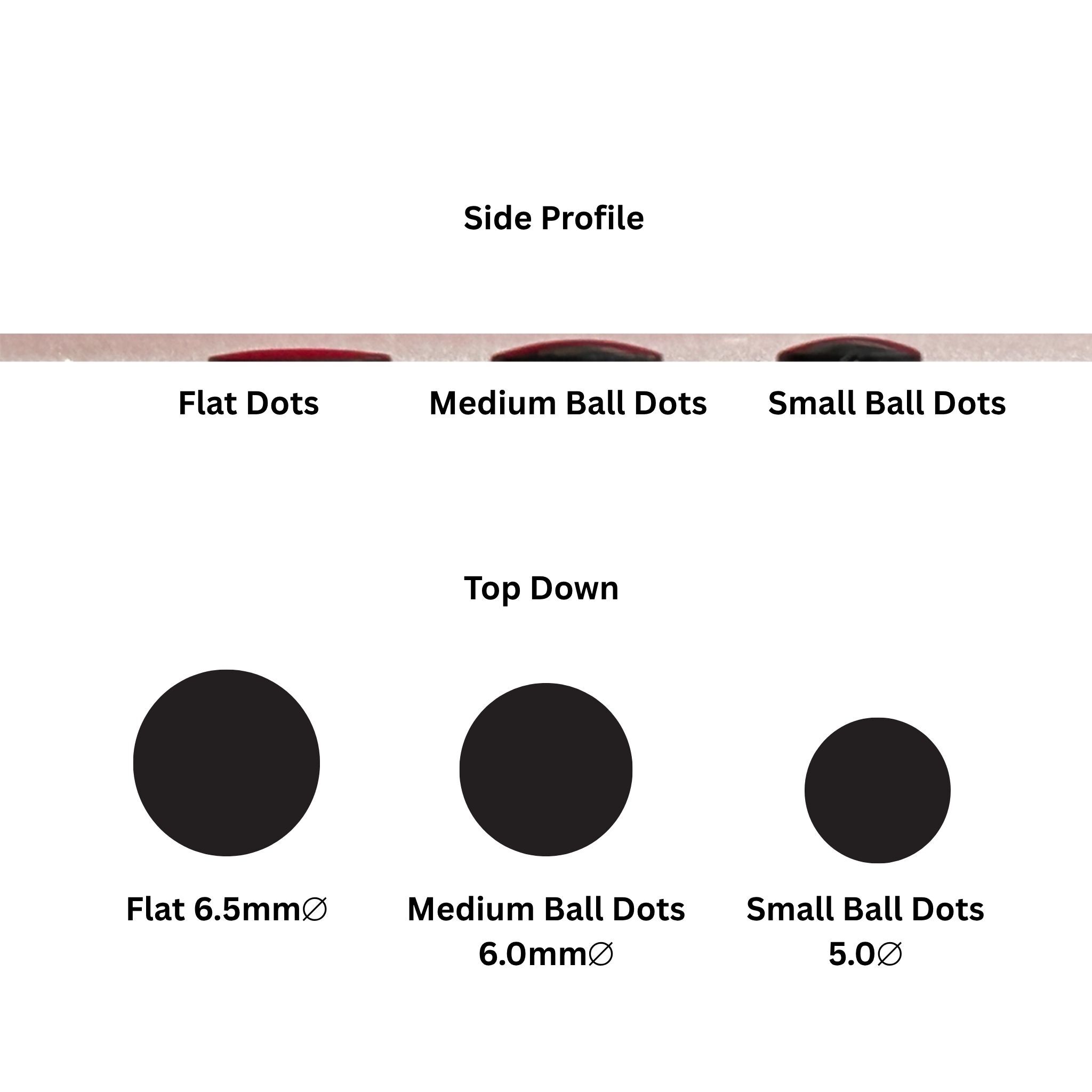

1. Flat Small Dot (微扁平型小圆点)

• Key Specifications:

  • Diameter: 6.5 mm

  • Thickness: 0.7 mm base | ~0.8 mm raised height (Relatively thin)

  • Static Friction: 0.098 (Lowest)

  • Dynamic Friction: 0.062 (Fastest)

  • Material: High-purity PTFE + Japanese SEKISUI noise-dampening foam

• Recommended Mousepads: Glass pads and hard-surface mousepads.

• Key Features & Performance:

  • Flat Profile: Nearly flat shape delivers very high initial speed right out of the box.

  • Wear Transition: Transitions into a standard flat skate over time, shifting performance toward a medium/control glide.

  • Pad Interactions:

    • Speed pads: Fast glide speed.

    • Coarse texture pads: Offers more control and tactile feedback.

    • Smooth pads: Smooth glide with mild texture feel.

• Overall Rating: Medium-Fast (Glide-oriented on most pads; controlled on a few).

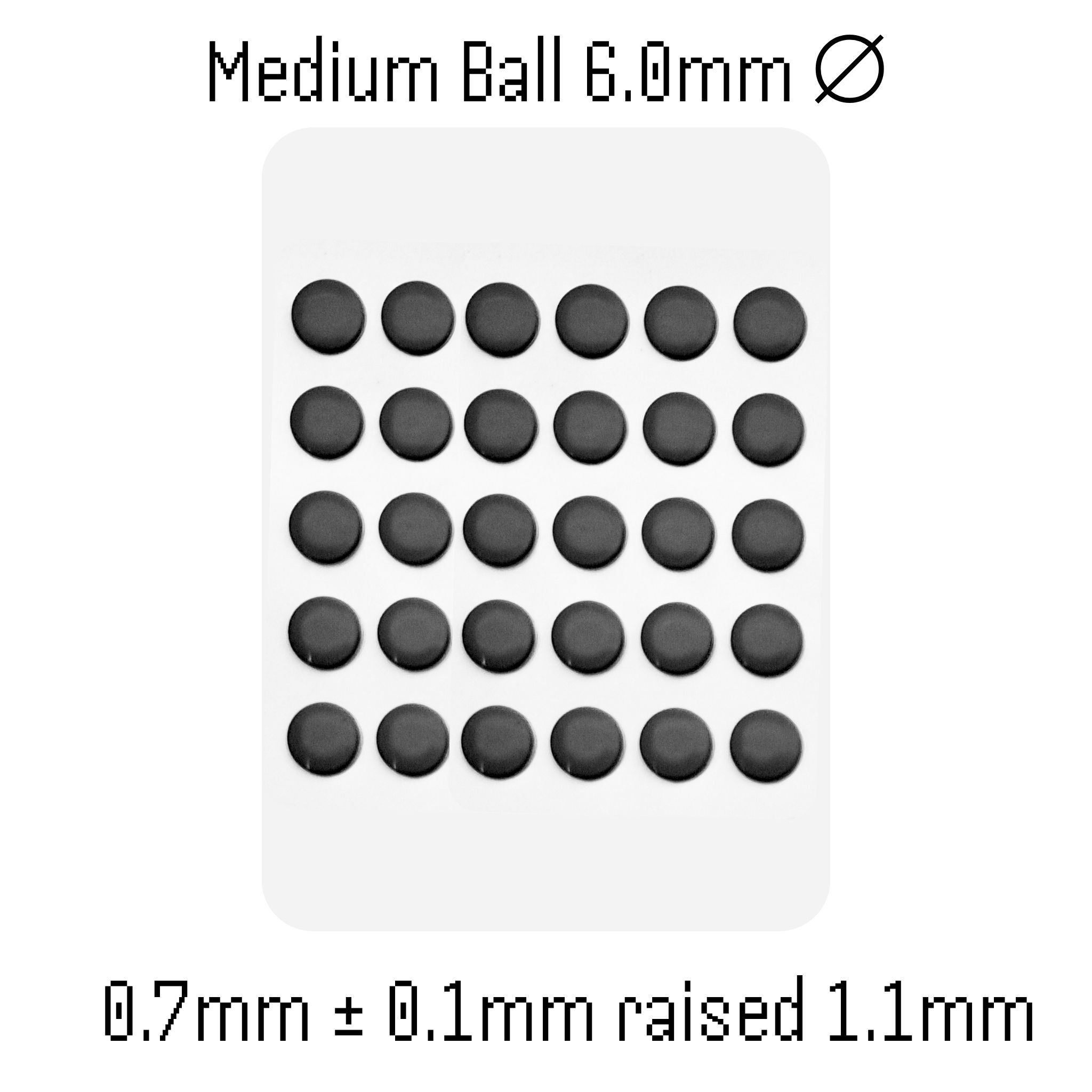

2. Medium Ball Small Dot (中球型小圆点)

• Key Specifications:

  • Diameter: 6.0 mm

  • Thickness: 0.7 mm base | ~1.1 mm raised height | ~0.9–1.0 mm actual usable thickness

  • Static Friction: 0.115

  • Dynamic Friction: 0.074

  • Material: High-purity PTFE + Japanese SEKISUI noise-dampening foam

• Recommended Mousepads: MID cloth pads (add extra dots), glass pads, and hard pads.

• Key Features & Performance:

  • In-Practice Speed: Friction numbers appear higher on paper because the small contact area depresses deeper under 200g test weights, but real-world glide is fast and smooth.

  • Debris Resistant: Small contact area reduces dust, lint, and hair buildup.

  • Control & Response: Excellent start-stop control with sharp tactile feedback.

  • Owner Choice: Currently the personal choice of the shop owner.

• Overall Rating: Smooth, clear tactile feedback, dust-resistant, with noticeable initial texture feel on coarse pads.

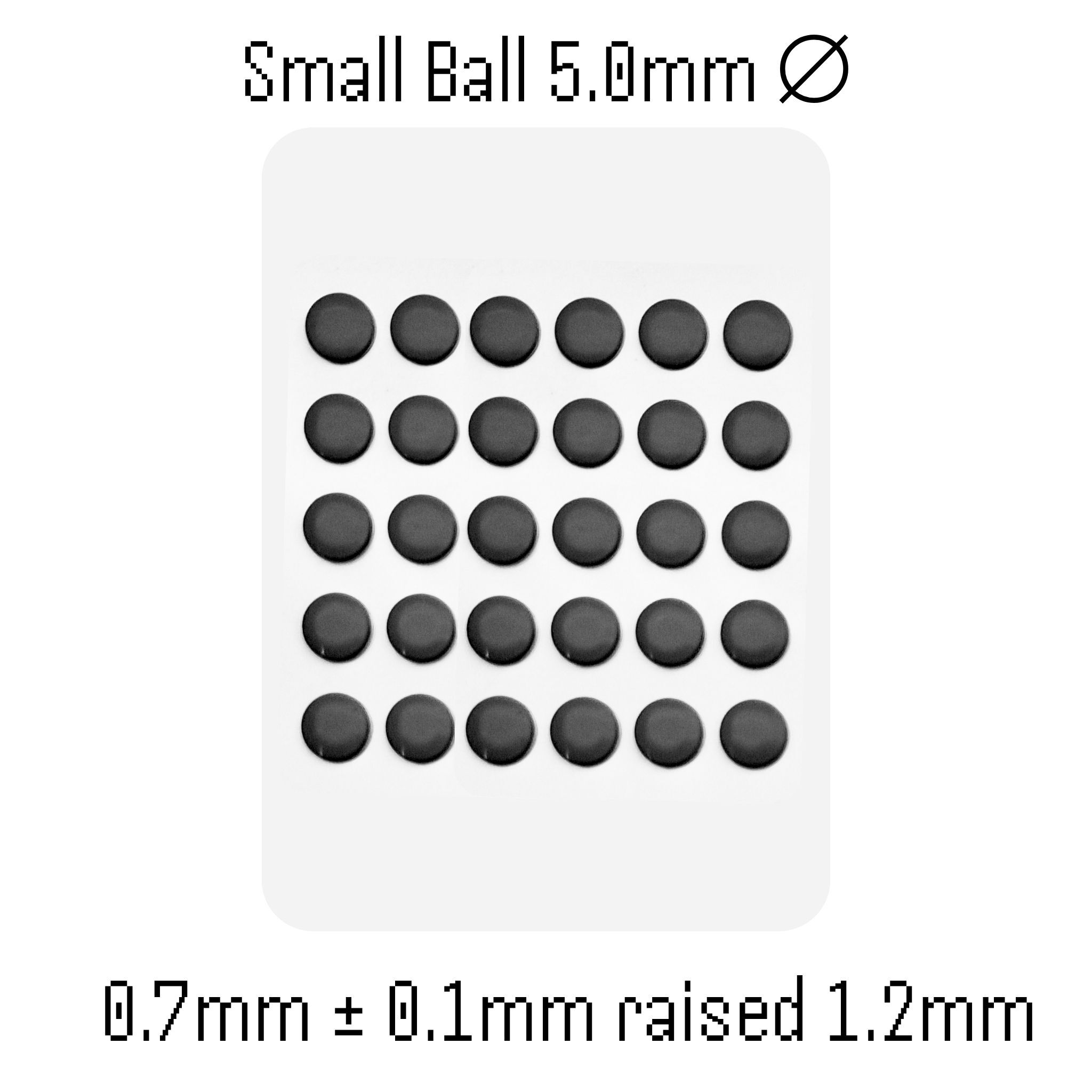

3. Small Ball Small Dot (小球型小圆点)

• Key Specifications:

  • Diameter: 5.0 mm (Smallest)

  • Thickness: 0.7 mm base | ~1.2 mm raised height | ~0.9–1.0 mm actual usable thickness

  • Static Friction: 0.118

  • Dynamic Friction: 0.082

  • Material: High-purity PTFE + Japanese SEKISUI noise-dampening foam

• Recommended Mousepads: MID cloth pads (add extra dots), glass pads, and hard pads.

  • ⚠️ Avoid: Soft or plush cloth pads (dots will sink into the surface).

• Key Features & Performance:

  • Minimal Contact Area: Starts with a tiny contact point that expands slightly with wear, maintaining a glidier, highly textured feel.

  • High Tactile Definition: Provides sharp, amplified texture feedback from the mousepad.

  • Debris Resistant: Excellent resistance to dust and lint accumulation.

  • Precision: Great start-stop handling and high agility.

• Overall Rating: Smooth, sharp tactile response, highly dust-resistant, with minimal surface area expansion over time.

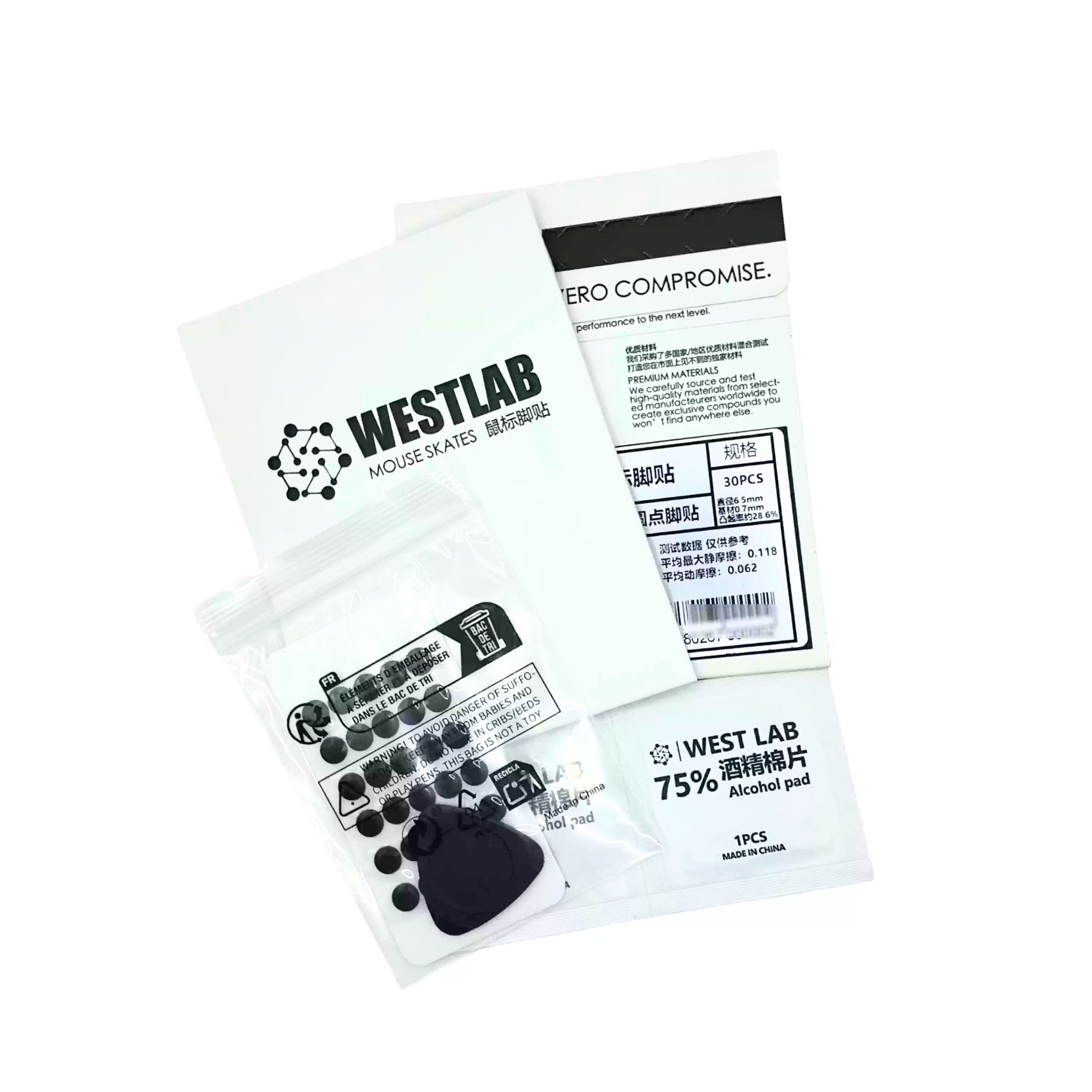

Package Contents

• Small Dots: 20 DOTS
• Big Dots: 12 DOTS
• Alcohol Wipes
